What's a complete system when use a "pixel lights"?
You know a LED Pixel Light that it is controlled by a IC driver.
The most popular IC driver on the market are WS2811/UCS1903/SM16703, SK6812/WS2812/GS8206/GS8206/TM 1914/UCS512 etc.
It needs a controller which can control the IC driver so that the IC will control the RGB colors as required.
A LED Pixel Light works with a DC voltage , it needs a power supply that AC input and ouput the DC to the pixel light.
Here is a complete system:
Part 1,
a, LED Pixel Light/LED Pixel Strips
b,5-24V DC Power supply ( depends on the voltage of the light)
c,SD card controller
Part 2,
a, LED Pixel Light/LED Pixel Strips
b,5-24V DC Power supply ( depends on the voltage of the light)
c,Smart phone controller
Part 3,
a, LED Pixel Light/LED Pixel Strips
b,5-24V DC Power supply ( depends on the voltage of the light)
c,PC online controller
a, LED Pixel Light/LED Pixel Strips
b,5-24V DC Power supply ( depends on the voltage of the light)
c,DMX artnet controller.

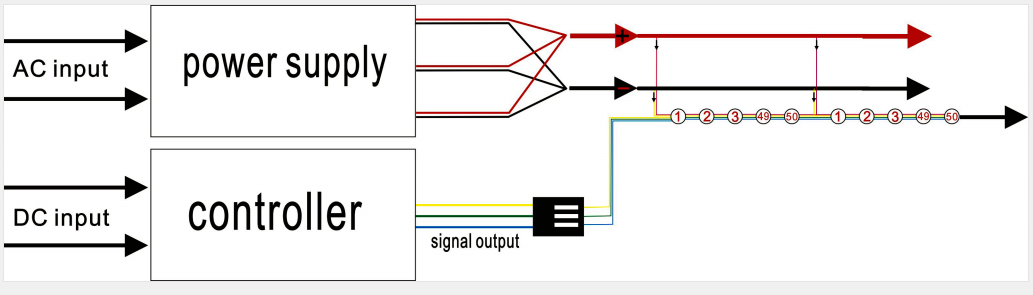

LED Pixel Light Connection Diagram
Note:
The LED Lights must to use a smart controller to control them
They are low voltage , you will need a power supply to work with them.
Power injection
Our Lights mainly work with 5Vdc-24Vdc. So we will need the power supplys to convert the AC to DC.
1, 5V Pixel Lights need power injection in each 50 lights. Normally We made them in a 50 lights per strand.
2,5V Pixel tapes need power injection in each 5 meters.
3,12V Pixel Lights need Power injection in each 100 lights. 12V Pixel Tapes need power injection in each 5 meters.
4,24V Pixel Lights need power injection in each 150 Lights. 24V Pixel Tapes need power injection in each 10 meters.
IP Grade and Different IP for the projects
Both of our lights are IP Rated and Non waterproof. Our Pixel Lights are IP67 for exteior projects.
Our Pixel Tapes have IP20 ( for indoor project) IP65 ( Silicone coated) IP67 ( Silicone tube)
