12V 12mm Bullet WS2811 LED Pixel Light
- Description
- Download
- Video
-
- Commodity name: 12V 12mm Bullet WS2811 LED Pixel Light
- Commodity ID: LED Pixel Light
The WS2811 LED Pixel Light is an innovative lighting solution that brings mesmerizing visual effects to life. This state-of-the-art technology combines WS2811 controllers with individually addressable RGB LEDs to create stunning and dynamic lighting displays. 12V Bullet Smart Pixels xConnector Waterproof pigtails WS2811/UCS1903 Protocol
- Pixel Voltage: 12V DC
- Pixel Color: RGB
- Pixel Protocol: WS2811/UCS1903
- Pixel Spacing: 10cm / ~4"/Customized
- Lead Length: 150mm / ~6"
- Pixel Type: Smart Bullet
- Pixels Per. String: 50
- Compatible Pigtail: xConnect
- Power Consumption Based On 100% White:
- Max Node Current Draw: 60mA
- Max Node Wattage: 0.72W
- Max String Current Draw: 3A
- Max String Wattage: 36W
- Max Nodes Before Power Injection: 120
- DMX Channels:
- Per Pixel: 3
- Per String: 150
- Required Controller: Smart Pixel
- Viewing Angle: 150 - 180°
- Weather Protection: IP68
- Width: 12mm
- Wire Color: Black
- Wire Gauge: 18AWG
The WS2811 LED Pixel Light is an innovative lighting solution that brings mesmerizing visual effects to life. This state-of-the-art technology combines WS2811 controllers with individually addressable RGB LEDs to create stunning and dynamic lighting displays.

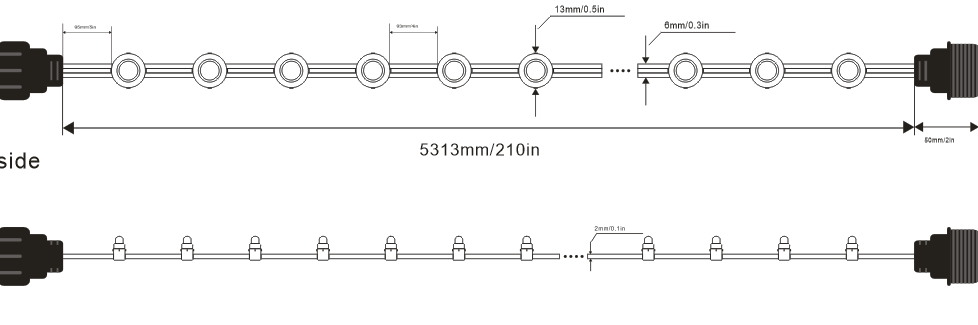

Whether you're a lighting professional or a DIY enthusiast, the WS2811 LED Pixel Light offers limitless creative possibilities. With its individual pixel control, versatile design, seamless integration capabilities, brilliant color output, energy efficiency, and ease of installation, this lighting solution is ideal for bringing life and excitement to any space. Experience the magic of the WS2811 LED Pixel Light and create breathtaking lighting displays that leave a memorable impact.DIMENSION:
Key words:- LED Pixel Light
- Smart RGB LED Pixel
- WS2811
-
